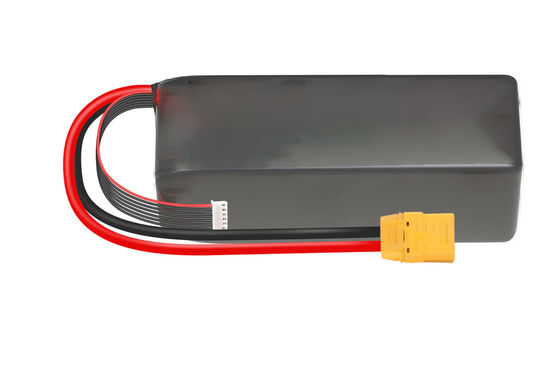

6S 22.2V 22Ah LiPo Semi Solid State Lithium ion Cargo UAV Industrial VTOL RC Drone Lithium Battery
सभी श्रेणियाँ
संपर्क करें
Ms. Lexi Bai
4
अभी संपर्क करें

6S 22.2V 22Ah LiPo Semi Solid State Lithium ion Cargo UAV Industrial VTOL RC Drone Lithium Battery

ब्रांड नाम: LEADYO
मॉडल संख्या: SSS6S22
एमओक्यू: 2
कीमत: 50-200
पैकेजिंग विवरण: UN3480 Standard Export
विस्तृत जानकारी
Place of Origin:
CHINA
Supply Ability:
10000
उत्पाद वर्णन

6S 22.2V 22Ah LiPo Semi Solid State Lithium ion Battery for Cargo UAV Industrial VTOL RC Drone Lithium Battery

Nominal: 22Ah
Internal resistance: Approximately 0.6 Ω

Continuous discharge current : 5C

Peak current : 10C

Connector : XT60 ,XT90 or Anderson



22.2V 6S 22Ah Specification of Drone UAV



No.
Items
Specifications
1
Nominal Voltage
22.2V
2
Nominal Capacity
22Ah
3
Standard Charge Current
0.5C rate
4
Max. Charge Current
1C
5
Max Continuous Discharge current
5C
6
Peak current

10C
7
Discharge Cut-off Voltage
16.5V
8
Inner Resistance(Impedance)
≤10mΩ (At 0.2C rate)
9
Weight
1.9kg
10
Dimensions
195*78*69
  11
Operating Temperature
Charging: 0°C ~45°C
Discharging: -20°C ~ 55°C
12
Storage Temperature/Humidity
Temperature: -20°C ~ +45°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)



6S 22.2V 22Ah LiPo Semi Solid State Lithium ion Cargo UAV Industrial VTOL RC Drone Lithium Battery 0



6S 22.2V 22Ah LiPo Semi Solid State Lithium ion Cargo UAV Industrial VTOL RC Drone Lithium Battery 1
